CWC and Blue White Pool Products

CWC controllers and Blue White meters offer excellent control & measurement of swimming pool water. With a design emphasis on delivering a rugged, reliable instrument, this equipment provides good service life in the harsh environment of a pump room. In addition, the DCON XP2 Controller (produced by CWC) is user friendly while offering excellent control accuracy.

Unit applications

Typical use of single units would be pH control on salt chlorinated pools, or ORP control on spas using bromine as a sanitiser. Combined units (pH / ORP) are supplied on a PVC mount board with a double 10 amp GPO for plug in dosing pumps.

Customised products

Tailor-made controller packages can be simply built up by selecting a particular controller, specifying the required sanitiser and pH delivery systems and matching with the required accessories. Pool Products can supply a controller package as single component parts for your assembly, or as a complete package fully assembled ready for wall mount. Special customer requirements can be catered for at time of assembly.

DCON XP2 Model Controllers

DCON ORP-XP2 ORP Meter & Controller (ORP probe optional)

Programmable for either dosing oxidant or reductant, the DCON ORP-XP2 ORP Meter & Controller has a 240VAC switched output (programmable dose cycle ON/OFF with boost dose facility). The LCD displays measured ORP (mV) and mV setpoint, with a manual output test facility. Features include high and low ORP (mV) alarms (failsafe) and optional 4-20mA and BMS retransmission. The system is also weatherproof.

DCON PH-XP2 pH Meter & Controller (pH probe optional)

Programmable for either dosing acid or base, the DCON PH-XP2 pH Meter & Controller has a 240VAC switched output (programmable dose cycle ON/OFF with boost dose facility). LCD displays measured pH and pH setpoint, with a manual output test facility. Featuring high and low pH alarms (failsafe) the unit is weatherproof. Optional 4-20mA and BMS retransmissions are available.

DCON PH/ORP-XP2 Chemical Controller

  • Micro Processor circuitry.
  • LCD Digital display, unlit or backlit.
  • Resolution ORP 1mv, ph 0.01.
  • Setpoint and actual reading on display.
  • Flow switch connection.
  • Programmable high and low alarms.
  • Timer alarm, maximum dosing time.
  • Times programmable.
  • Pump relay, run to set point or programmable on/off proportional.
  • Programmable Hysteresis.
  • Voltage free relay switches for alarm.
  • Manual operation for pump prime.

Blue White Water Flow Meters

  • F-1000 RT Saddle Mount Meter

    An economic battery powered (2 AAA batteries) flowmeter ideally suited to the pool and general water industries. Reliable and simple to fit, the Blue White flowmeter offers accuracy you would only expect from more expensive units. With an easy-to-read 6 digit LCD up to 4 decimal places, it features a display update of 0.5 seconds. Installed quickly on existing pipe (saddle mount), it suits pipe diameters from 11/2 – 12 inch. Other features include a weather resistant ABS enclosure, corrosion resistant PVDF sensor and no pressure drop.

    Specifications:

    Temperature:
    4-6-8-10-12 inch. PVC material 60.0°C. 11/2—2—3.   PVDF material  93.0°C.
    Pressure:
    20 bar. @ 21°C
    Full-scale accuracy:
    +/- 2.0%
    Meter body material:
    ABS.
    Adaptor material:
    PVDF
    O rings:
    Viton / EPDM

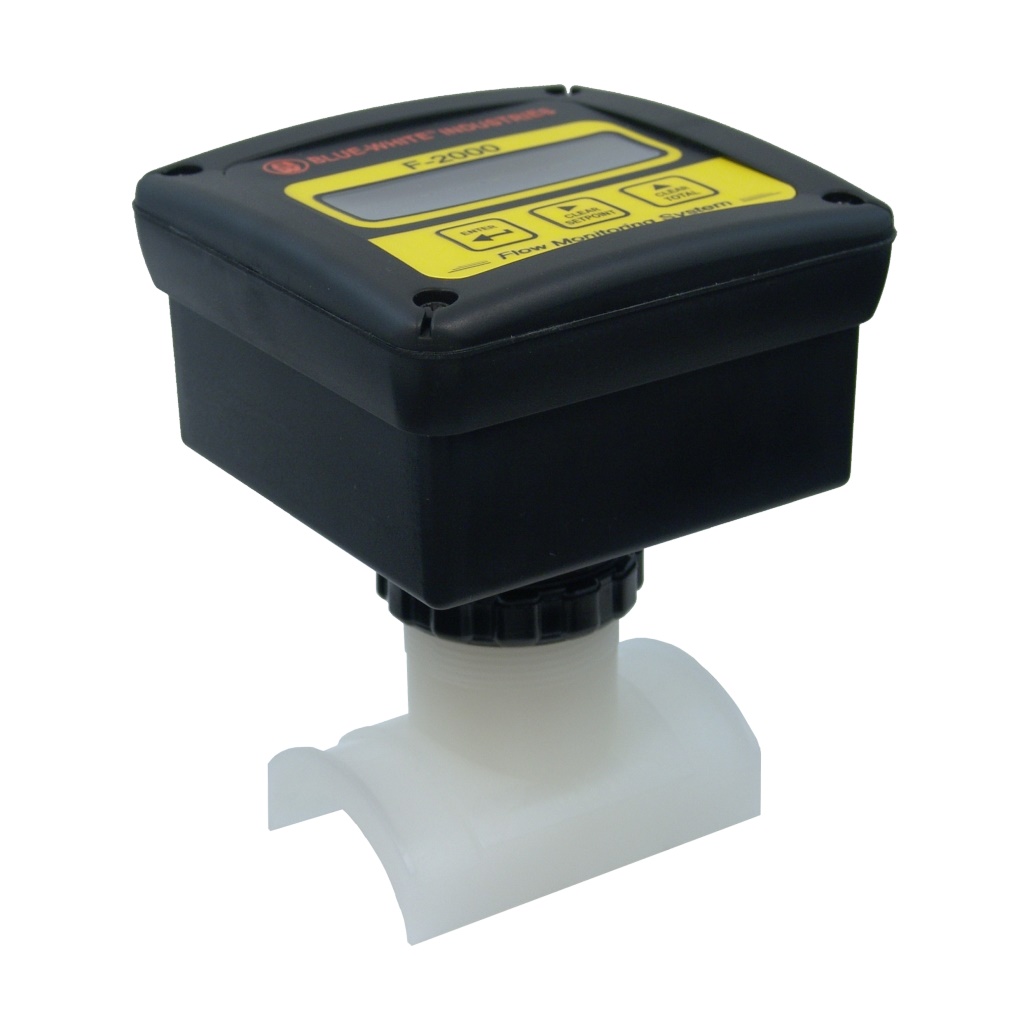

  • F-2000 RT Saddle Mount Meter

    A more advanced transformer or battery powered flowmeter ideally suited to the pool and general water industries, for pipe diameters from 11/2 - 12 inch. Highly reliable and simple to fit, the Blue White F-2000 flowmeter offers accuracy and has more advanced controllability than the F-1000. It features an easy-to-read 8 digit LCD up to 4 decimal places, with a flow rate and total flow display.

    Specifications:

    Temperature:
    1 1/2 - 2 - 3 inch in PVDF material 93.0°C max. 4 - 6 - 8 - 10 - 12 inch in PVC material 60.0°C max.
    Pressure:
    20 bar max. @ 21°C
    Full-scale accuracy:
    +/- 2.0 %
    Meter body material:
    ABS
    Adaptor material:
    PVDF.
    O rings:
    Viton. / EPDM
  • F-440 Series Inline Meter

    The F-440 series is an accurate visual flow-through metre ideally suited to the pool and general water industries. These meters are very reliable and simple to set and read, featuring a direct reading permanent scale. Made of tough Polysulfone, the metre body resists high temperatures and pressures. A compact size for tight installation spaces, it measures only 50 mm in scale length. It also features standard 316 stainless steel guide rods with optional K-series Hastelloy C-276. The F-440 is available in in-line or panel mount configurations.

    Specifications:

    Temperature:
    100.0°C max
    Pressure:
    12.0 bar @ 21.0°C max
    Full-scale accuracy:
    +/- 4.0 %
    Meter body material:
    Polysulfone
    Adaptor material:
    Polysulfone
    O rings:
    Viton. optional EPDM

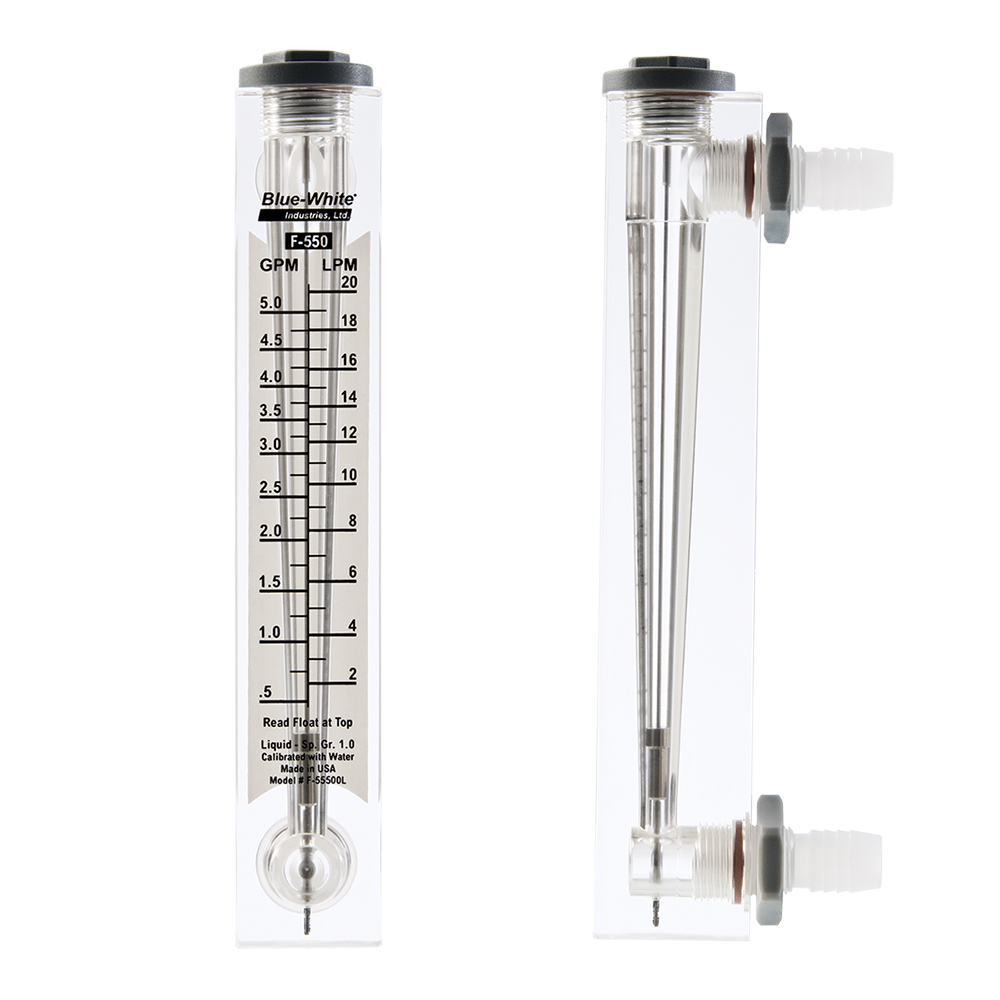

  • F-550 Series Inline Meter

    The F-550 series is an accurate panel mount metre. A one piece machined acrylic construction, it measures 50 mm scale length. Manufactured in a durable, highly polished, one-piece acrylic body, it resists hight temperatures and pressures. Featuring an integrated flow control valve it is ideally suited to all fluid metering applications and general water industries. A high quality presentation, these meters are reliable to control and read with a direct reading permanent scale. The metre features standard 316 stainless steel guide rods with optional K-series Hastelloy C-276. A panel mounting option is also available.

    Specifications:

    Temperature:
    93.0°C max
    Pressure:
    17.2 bar @ 21.0°C max
    Full-scale accuracy:
    +/- 5.0 %
    Meter body material:
    Machined Acrylic
    Adaptor material:
    Polypropylene
    O rings:
    Viton. optional EPDM

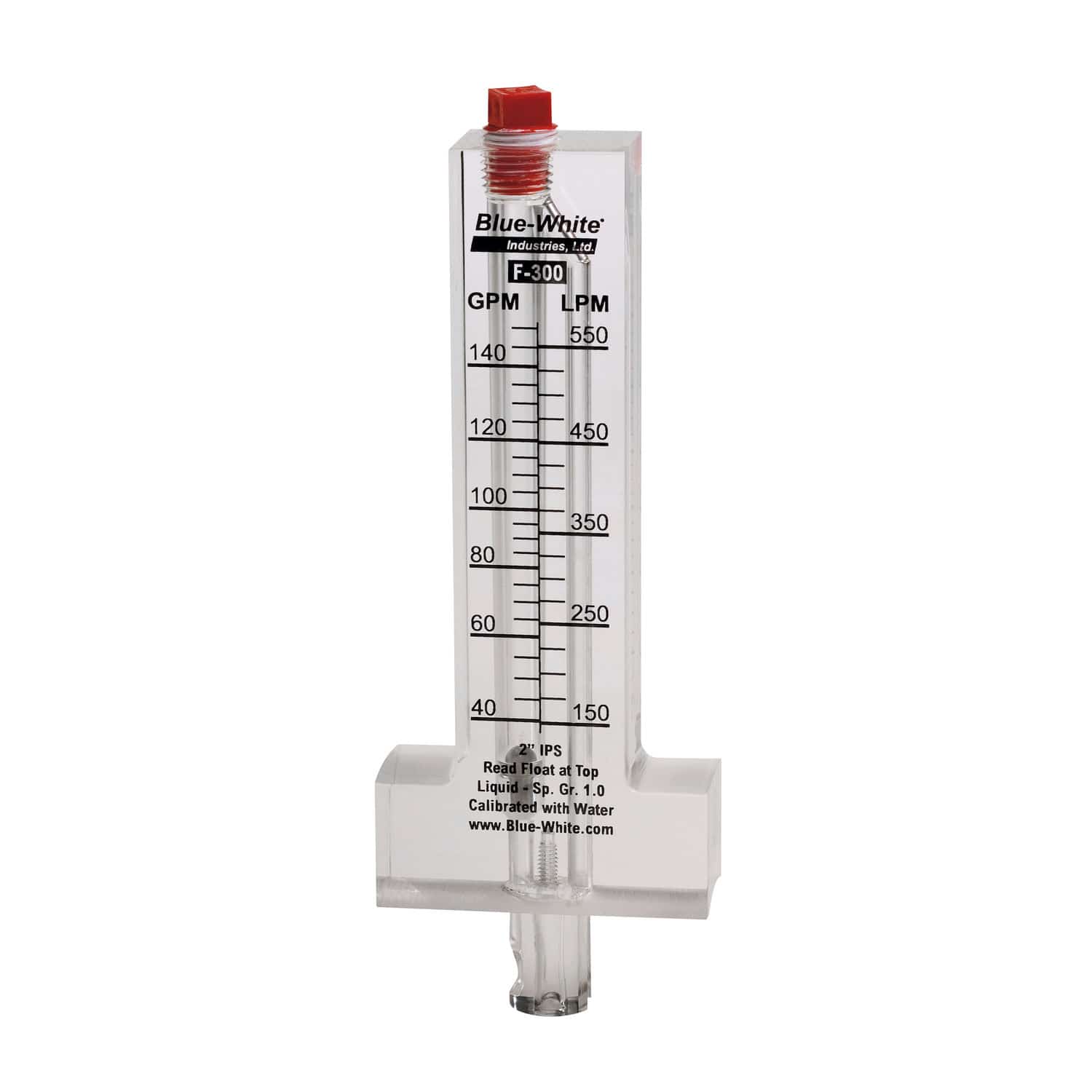

  • F-300 Series Pipemount Meter

    The F-300 series is an accurate piped mounted flow meter. One piece machined acrylic body offers superior presentation & resistance to chemical attacks, pressure & temperature. This easy to read meter is quickly retro-fitted to existing pipework with a rapping saddle fixing.

    Specifications:

    Temperature:
    98°C
    Pressure:
    5.2 bar @ 21°C
    Full-scale accuracy:
    +/- 5%
    Meter body material:
    Acrylic
    Gasket material:
    Neoprene
    O rings:
